Specifications
| Parameter | Details |
|---|---|

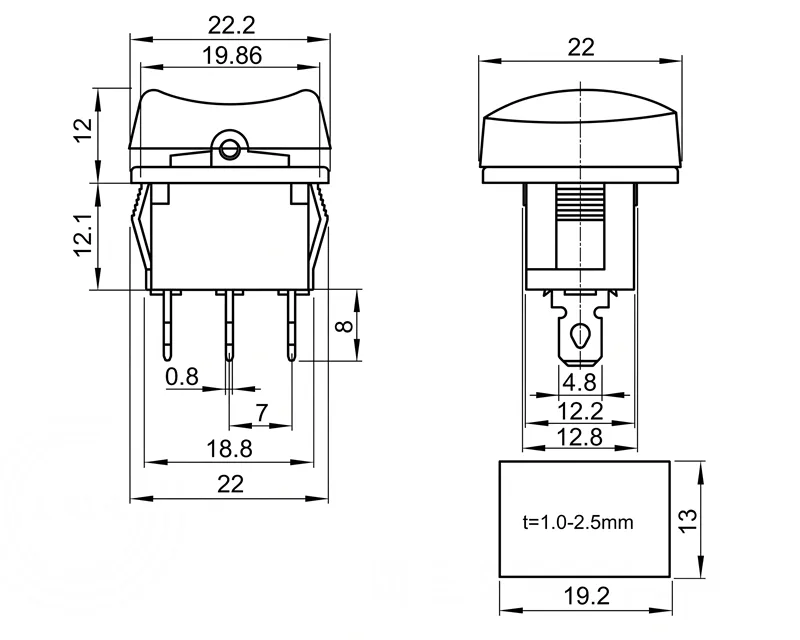

| Model | KCD1-108-2 |
| Switch Type | KCD Rocker Switch |
| Function | ON-OFF-ON |
| Pin | 3 Pin |
| Contact Type | SPDT |
| Rated Load | AC125V 10A / AC250V 6A |
| Mounting Type | Panel Mount |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Electrical Life | ≥10,000 cycles |
Key Features
- 3 pin ON-OFF-ON three-position design
- SPDT switching for dual circuit control
- Panel mount installation
- Stable contact performance
- Durable and long service life
Applications
- Household appliances
- Power supplies
- Industrial control panels
- Automotive electronics
- DIY electronics
Widely used in electrical systems requiring multi-position switching, flexible circuit selection, and reliable panel-mounted control.
Why Choose Our Rocker Switch
- Professional KCD1-108-2 rocker switch supplier with stable production capacity
- OEM / ODM customization available for 3 pin rocker switch manufacturer projects
- Reliable ON-OFF-ON boat switch for appliances and industrial control systems
- High-quality panel mount power switch factory China with strict QC system
- Durable three position rocker switch for multi-mode circuit control applications
- Fast delivery and global supply support for bulk orders
FAQ
Q1: What is a KCD1-108-2 rocker switch?
It is a 3 pin ON-OFF-ON rocker switch used for switching between two circuits with a center OFF position.
Q2: What does ON-OFF-ON mean?
It means the switch has two ON positions and one OFF position, allowing flexible circuit selection.
Q3: What is the function of a 3 pin rocker switch?
It connects a common terminal to one of two outputs or disconnects both in the OFF position
Q4: What is the rated voltage and current?
It is typically rated at AC125V 10A or AC250V 6A
Q5: Does this rocker switch support OEM/ODM customization?
Yes, OEM/ODM services are available including color, marking, terminals, and packaging.
