Specifications
| Parameter | Details |
|---|---|
| Model | KCD3-101-N-5 |
| Switch Type | KCD Rocker Switch |
| Function | ON-OFF |
| Pin | 3 Pin |
| Contact Type | SPST |
| Rated Load | AC125V 20A / AC250V 16A |
| Mounting Type | Panel Mount |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Electrical Life | ≥10,000 cycles |
Core Features of Illuminated KCD3 Rocker Switch
- Built-in LED indicator (illuminated design)
- High current rating: 20A 125VAC / 16A 250VAC
- 3 pin ON-OFF configuration
- Clear visual power status display
- Snap-in panel mount design
- Durable mechanical life ≥10,000 cycles
Technical Specifications
- Model: KCD3-101-N-5
- Pins: 3 Pin
- Function: ON-OFF
- Type: Illuminated (LED)
- Rated Voltage: 125V / 250V AC
- Rated Load: 20A @125VAC / 16A @250VAC
- Mounting: Panel Mount

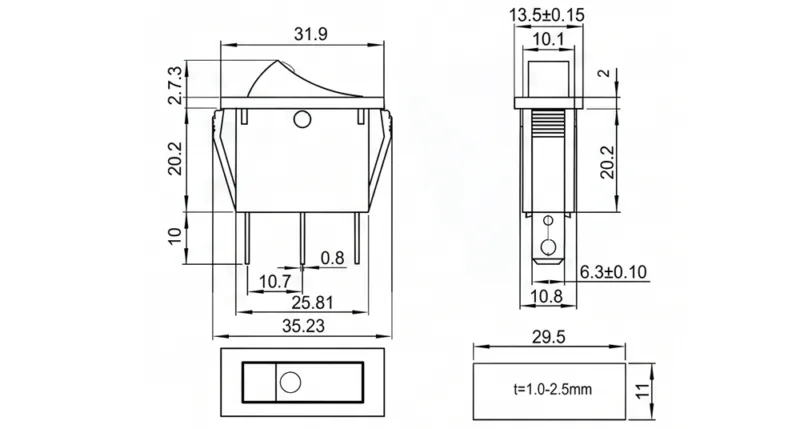

- Panel Size: ~30×22mm
- LED Color: Red / Green / Blue (customizable)
Applications
Industrial control panels and machinery
Home appliances such as heaters and power tools
Automotive and marine switch panels
Power distribution and extension systems
Summary:
Illuminated KCD3 rocker switches provide both power control and visual status indication, making them ideal for high-current applications.
Why Choose Our Illuminated Rocker Switch
- High visibility LED indicator design
- High current capacity up to 20A
- Full KCD3 illuminated models available
- OEM/ODM customization supported
- Stable quality for industrial use
- illuminated rocker switch supplier
- 20a lighted rocker switch manufacturer
- led rocker switch factory
FAQ
What is an illuminated rocker switch?
An illuminated rocker switch has a built-in LED light that indicates whether the switch is ON or OFF.
Does the light stay on all the time?
No, the LED typically lights up only when the switch is in the ON position.
What is the advantage of a lighted rocker switch?
It provides clear visual feedback, especially useful in dark or complex control panels.
Is KCD3 illuminated switch suitable for high power devices?
Yes, it supports up to 20A current, making it suitable for heavy-duty applications.
