Specifications
| Parameter | Details |
|---|---|

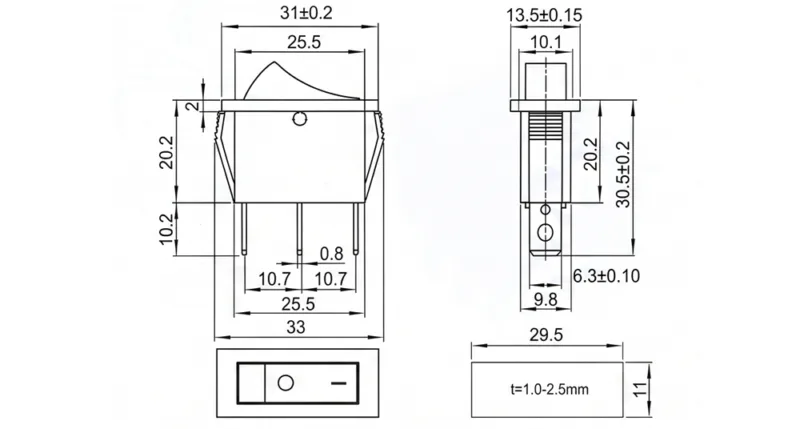

| Model | KCD3-101-N-4 |
| Switch Type | KCD Rocker Switch |
| Function | ON-OFF |
| Pin | 3 Pin |
| Contact Type | SPST |
| Rated Load | AC125V 20A / AC250V 16A |
| Mounting Type | Panel Mount |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Electrical Life | ≥10,000 cycles |
Core Features of KCD3 Rocker Switch
- High current rating: 20A 125VAC / 16A 250VAC
- 3 pin ON-OFF configuration
- Snap-in panel mount design
- Optional illuminated versions
- Durable mechanical life ≥10,000 cycles
- Flame-retardant housing (PA66)
Technical Specifications
- Model: KCD3-101-N-4
- Pins: 3 Pin
- Function: ON-OFF
- Rated Voltage: 125V / 250V AC
- Rated Load: 20A @125VAC / 16A @250VAC
- Mounting: Panel Mount (Snap-in)
- Electrical Life: ≥10,000 cycles
Applications
Industrial equipment such as control panels and machinery
High-power appliances including heaters and power tools
Automotive and marine power systems
Power distribution units and extension sockets
Summary:
KCD3 rocker switches are ideal for high-current power control applications requiring durability and stability.
Why Choose Our KCD3 Rocker Switch
- High current capacity up to 20A
- Full KCD3 model range available
- OEM/ODM customization supported
- Stable quality for industrial use
- Fast delivery and bulk supply
- 20a rocker switch supplier
- high current rocker switch manufacturer
- kcd3 power switch factory
FAQ
What is the current rating of KCD3 rocker switch?
KCD3 switches are typically rated at 20A 125VAC and 16A 250VAC.
Is KCD3 suitable for high power devices?
Yes, it is designed for high current applications such as heaters, power tools, and industrial equipment.
What is the difference between KCD1 and KCD3?
KCD1 is used for lower current applications, while KCD3 supports higher current loads up to 20A.
