Specifications
| Parameter | Details |
|---|---|

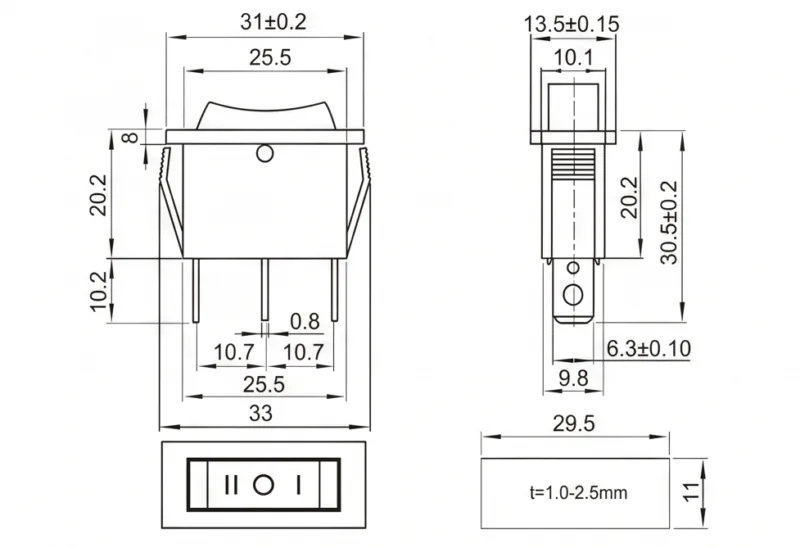

| Model | KCD3-101-3 |
| Switch Type | KCD Rocker Switch |
| Function | ON-OFF-ON |
| Pin | 3 Pin |
| Contact Type | SPDT |
| Rated Load | AC125V 20A / AC250V 16A |
| Mounting Type | Panel Mount |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Electrical Life | ≥10,000 cycles |
Key Features
- 3 pin ON-OFF-ON three-position design
- SPDT switching for dual circuit selection
- Panel mount snap-in installation
- Stable electrical contact performance
- Durable construction for repeated operation
Applications
- Industrial control systems
- Mode selection panels
- Power switching systems
- Automotive electronics
- DIY electrical projects
Widely used in electrical systems requiring multi-position switching, flexible circuit routing, and reliable panel-mounted control.
Why Choose Our Rocker Switch
- Professional KCD3-101-3 rocker switch supplier with stable production capacity
- OEM / ODM customization available for 3 pin ON-OFF-ON rocker switch manufacturer projects
- Reliable three position boat switch for industrial control and equipment systems
- High-quality panel mount rocker switch factory China with strict QC system
- Durable SPDT rocker switch for mode selection and circuit switching applications
- Fast delivery and global B2B supply support
FAQ
Q1: What is a KCD3-101-3 rocker switch?
It is a 3 pin ON-OFF-ON rocker switch used for switching between two circuits with a center OFF position.
Q2: What does ON-OFF-ON mean?
It means the switch has two ON positions and one OFF position, allowing selection between two outputs.
Q3: What is the function of a 3 pin SPDT rocker switch?
It connects a common terminal to one of two outputs, or disconnects both in the OFF position
Q4: Is this a high current rocker switch?
KCD3 series generally supports higher load capacity than KCD1, and some models can handle higher current depending on configuration
Q5: Does this rocker switch support OEM/ODM customization?
Yes, customization is available for terminals, ratings, housing, and branding.
