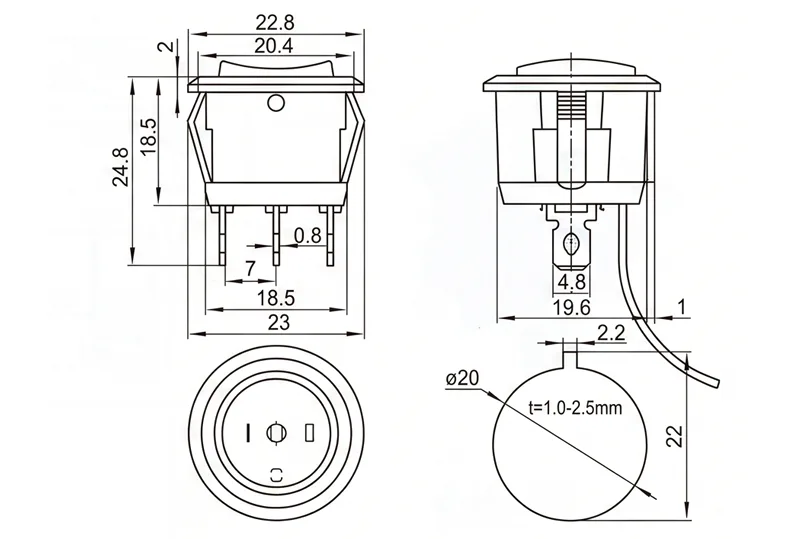

Specifications
| Parameter | Details |
|---|---|
| Model | KCD1-105-N-8 |
| Switch Type | KCD Rocker Switch |
| Function | ON-OFF-ON (Three Position) |
| Pin | 3 Pin |
| Contact Type | SPDT |
| Rated Load | AC125V 10A / AC250V 6A |
| Mounting Type | Panel Mount |
| LED Indicator | Yes |
| Electrical Life | ≥10,000 cycles |
Key Features
- 3 position ON-OFF-ON switching design
- 3 pin SPDT structure for dual function control
- Built-in LED indicator for visual feedback
- Designed for seat heating and ventilation systems
- Panel mount snap-in installation
Applications
- Car seat heating systems
- Car seat ventilation systems
- Automotive dashboards
- Vehicle interior control panels
- Industrial control systems
Widely used in automotive electrical systems for controlling seat heating (high/low) and seat ventilation modes with intuitive three-position switching.
Why Choose Our Rocker Switch
- Professional KCD1-105-N-8 rocker switch supplier for automotive seat control systems
- OEM / ODM customization available for car seat heater and ventilation switch manufacturer projects
- Reliable 3 position rocker switch for seat heating and cooling control applications
- High-quality automotive rocker switch factory China with strict QC standards
- Durable LED rocker switch for vehicle interior control panels and dashboards
- Fast delivery and global OEM supply support
FAQ
Q1: What is a KCD1-105-N-8 rocker switch?
It is a 3 pin ON-OFF-ON rocker switch with LED indicator used for controlling car seat heating and ventilation systems.
Q2: What does three position rocker switch mean?
It means the switch has three positions, typically used for high, off, and low control modes.
Q3: How does it control seat heating and ventilation?
The switch allows users to toggle between different modes such as heating, off, and ventilation using a simple rocker operation.
Q4: Why does this switch have an LED indicator?
The LED provides visual feedback to show the active mode, improving usability and safety.
Q5: Does this switch support automotive OEM customization?
Yes, OEM/ODM customization is available including symbols, LED color, wiring, and vehicle integration.
