Specifications
| Parameter | Details |
|---|---|

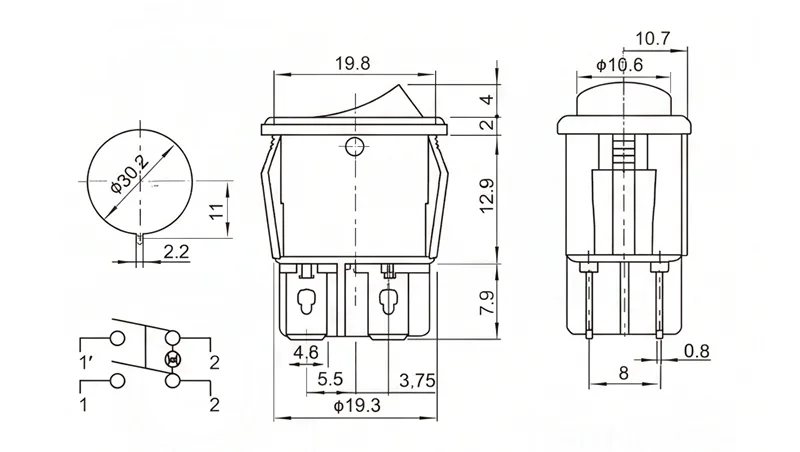

| Model | KCD1-105-N-6 |
| Switch Type | Rocker Switch |
| Function | ON-OFF |
| Pin | 4 Pin |
| Contact Type | DPST |
| Rated Load | AC125V 10A / AC250V 6A |
| Mounting Type | Panel Mount |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Electrical Life | ≥10,000 cycles |
Key Features
- 4 pin dual circuit ON-OFF design
- DPST structure for simultaneous control
- Panel mount snap-in installation
- Stable contact performance
- High durability and long service life
Applications
- Industrial control panels
- Automotive electrical systems
- Power distribution equipment
- Machine control systems
- DIY electronics
Widely used in electrical systems requiring dual circuit switching, synchronized ON-OFF control, and reliable power distribution.
Why Choose Our Rocker Switch
- Professional KCD1-105-N-6 rocker switch supplier with stable production capacity
- OEM / ODM customization available for 4 pin dual circuit rocker switch manufacturer projects
- Reliable dual circuit ON OFF rocker switch for industrial control and automotive systems
- High-quality panel mount rocker switch factory China with strict QC standards
- Durable DPST rocker switch for synchronized power control applications
- Competitive pricing and fast global delivery support
FAQ
Q1: What is a KCD1-105-N-6 rocker switch?
It is a 4 pin ON-OFF rocker switch designed for controlling two circuits simultaneously.
Q2: What does a 4 pin rocker switch do?
A 4 pin rocker switch (DPST) allows two separate circuits to be switched ON or OFF at the same time.
Q3: What is the difference between 2 pin, 3 pin, and 4 pin rocker switch?
2 pin is basic ON-OFF, 3 pin supports extended wiring or indicator, while 4 pin allows dual circuit control.
Q4: What is the rated load?
It is typically AC125V 10A / AC250V 6A.
Q5: Does this rocker switch support OEM/ODM customization?
Yes, customization is available for LED, wiring configuration, voltage, and branding.
