Specifications
| Parameter | Details |
|---|---|

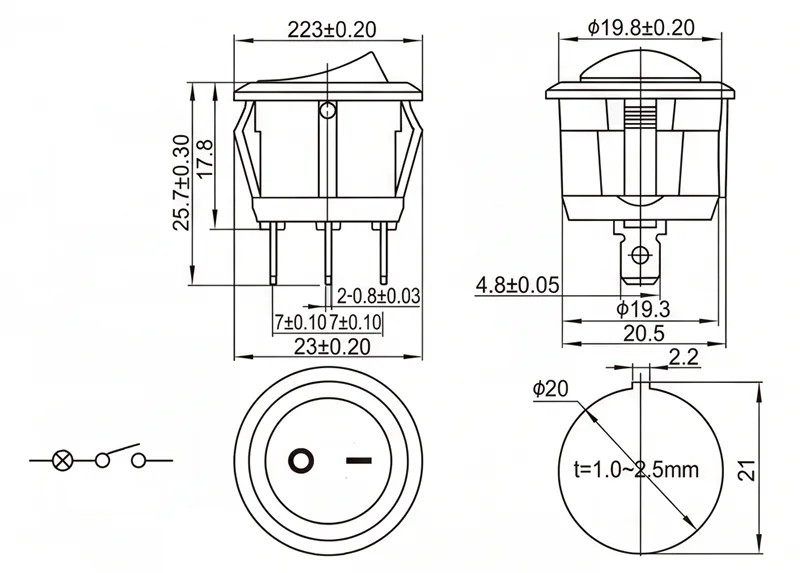

| Model | KCD1-105-N-4 |
| Switch Type | KCD Rocker Switch |
| Function | ON-OFF |
| Pin | 3 Pin |
| Contact Type | SPST |
| Rated Load | AC125V 10A / AC250V 6A |
| Mounting Type | Panel Mount |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Electrical Life | ≥10,000 cycles |
Key Features
- 3 pin ON-OFF switching function
- SPST / extended wiring design
- Panel mount snap-in installation
- Stable contact performance
- Compact structure with long lifespan
Applications
- Household appliances
- Power supplies
- Industrial control panels
- Automotive electronics
- DIY electronics
Widely used in electrical systems requiring reliable ON-OFF switching, stable contact performance, and easy panel mount installation.
Why Choose Our Rocker Switch
- Professional KCD1-105-N-4 rocker switch supplier with stable production capacity
- OEM / ODM customization available for 3 pin rocker switch manufacturer projects
- Reliable ON OFF boat switch for appliances, automotive, and industrial control systems
- High-quality panel mount rocker switch factory China with strict quality control
- Durable 3 pin rocker switch for compact power control applications
- Fast delivery and global support for bulk orders
FAQ
Q1: What is a KCD1-105-N-4 rocker switch?
It is a 3 pin ON-OFF rocker switch used for electrical circuit control in appliances, power systems, and industrial equipment.
Q2: What is the difference between 2 pin and 3 pin rocker switch?
2 pin switches are for simple ON-OFF control, while 3 pin switches allow extended wiring or indicator functions.
Q3: What is the rated load of this rocker switch?
It is typically rated at AC125V 10A and AC250V 6A.
Q4: Where can this rocker switch be used?
It is widely used in household appliances, automotive electronics, power supplies, and industrial control panels.
Q5: Does this switch support OEM/ODM customization?
Yes, customization is available for color, marking, LED options, and specifications.
