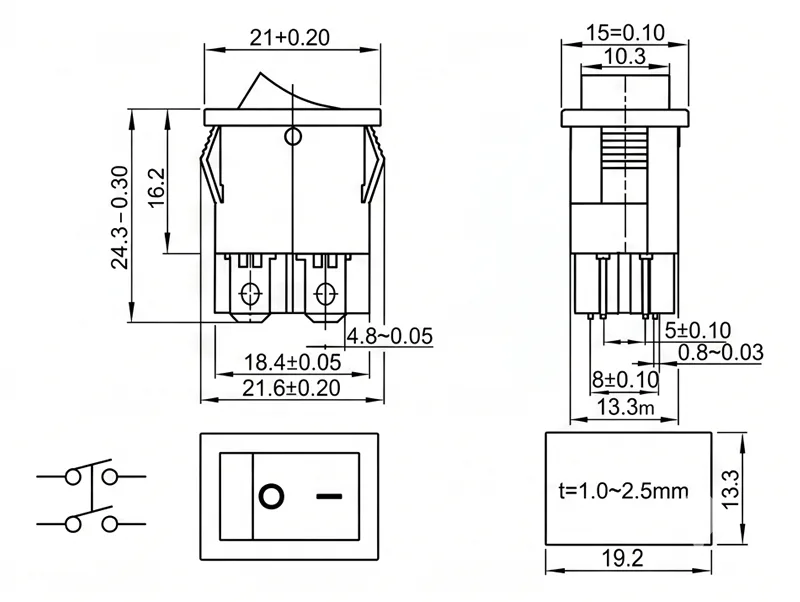

Specifications
| Parameter | Details |
|---|---|
| Model | KCD1-104-3 |
| Switch Type | KCD Rocker Switch |
| Function | ON-OFF (Dual Circuit) |
| Pin | 4 Pin |
| Contact Type | DPST (Double Pole Single Throw) |
| Rated Load | AC125V 10A / AC250V 6A |
| Mounting Type | Snap-in Panel Mount |
| Material | Thermoplastic (PA66) + Copper Contacts |
| Electrical Life | ≥10,000 cycles |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
Key Features
- 4 pin dual circuit (DPST) design
- Simultaneous ON-OFF control of two circuits
- Snap-in panel mount installation
- Compact and durable structure
- Stable electrical contact performance
Applications
- Household appliances
- Industrial control panels
- Power distribution systems
- Audio equipment
- DIY electronics
Widely used in electrical systems requiring synchronized ON-OFF control of dual circuits with stable performance and safe power management.
H3：Why Choose Our Rocker Switch
- Professional KCD1-104-3 rocker switch supplier with stable production capacity
- OEM / ODM customization available for 4 pin dual circuit rocker switch manufacturer projects
- Reliable DPST ON OFF boat switch for dual circuit power control systems
- High-quality panel mount rocker switch factory China with strict QC control
- Durable dual circuit rocker switch for industrial equipment and power distribution systems
- Fast delivery and global customer support for bulk orders
FAQ
Q1: What is a KCD1-104-3 rocker switch?
It is a 4 pin ON-OFF rocker switch designed for dual circuit control using a DPST structure.
Q2: What does a 4 pin rocker switch do?
It allows simultaneous ON-OFF switching of two independent circuits.
Q3: What is DPST in a rocker switch?
DPST stands for Double Pole Single Throw, meaning the switch controls two circuits at the same time with one action.
Q4: What is the rated voltage and current?
Typically AC125V 10A and AC250V 6A.
Q5: Does this rocker switch support OEM/ODM customization?
Yes, OEM/ODM customization is available for wiring configuration, color, marking, and application requirements.
