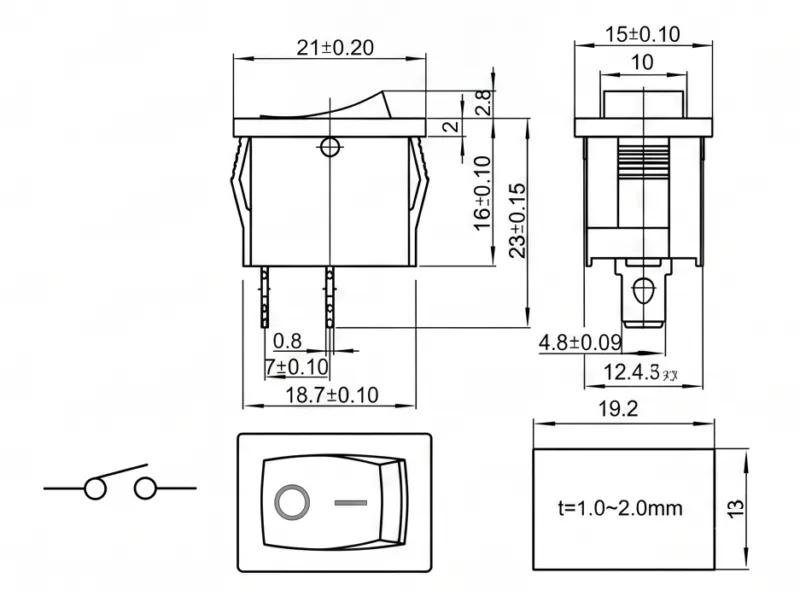

Specifications
| Parameter | Details |
|---|---|
| Model | KCD1-102-4 |
| Switch Type | KCD Rocker Switch |
| Function | ON-OFF |
| Pin | 2 Pin |
| Contact Type | SPDT |
| Rated Load | AC125V 10A / AC250V 6A |
| Mounting Type | Panel Mount |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Electrical Life | ≥10,000 cycles |
Key Features
- 2 pin ON-OFF switching function
- Dual active state control
- Compact boatlike structure
- Snap-in panel mount installation
- Stable electrical performance
Applications
- Mode selection systems
- Signal switching circuits
- Industrial control panels
- Electronic devices
- Automation systems
Widely used in systems requiring switching between two active circuit states with reliable and stable performance.
Why Choose Our Rocker Switch
- Professional KCD1-102-4 rocker switch supplier with stable production capacity
- OEM / ODM customization available for 2 pin ON OFF rocker switch manufacturer projects
- Reliable dual-state boat rocker switch for signal switching and control systems
- High-quality panel mount rocker switch factory China with strict quality control
- Durable mini rocker switch for industrial automation and electronic devices
- Fast delivery and global customer support
FAQ
Q1: What is a KCD1-102-4 rocker switch?
It is a 2 pin ON-OFF rocker switch used to switch between two active circuit states.
Q2: What does ON-OFF mean in a rocker switch?
ON-ON means both positions are active, allowing switching between two powered circuits instead of turning power off.
Q3: What is the difference between ON-ON and ON-OFF switch?
ON-OFF controls power on and off, while ON-ON switches between two active outputs.
Q4: What is the rated voltage and current?
It is typically rated at AC125V 10A and AC250V 6A
Q5: Does this switch support OEM/ODM customization?
Yes, OEM/ODM services are available including color, marking, and specification customization.
