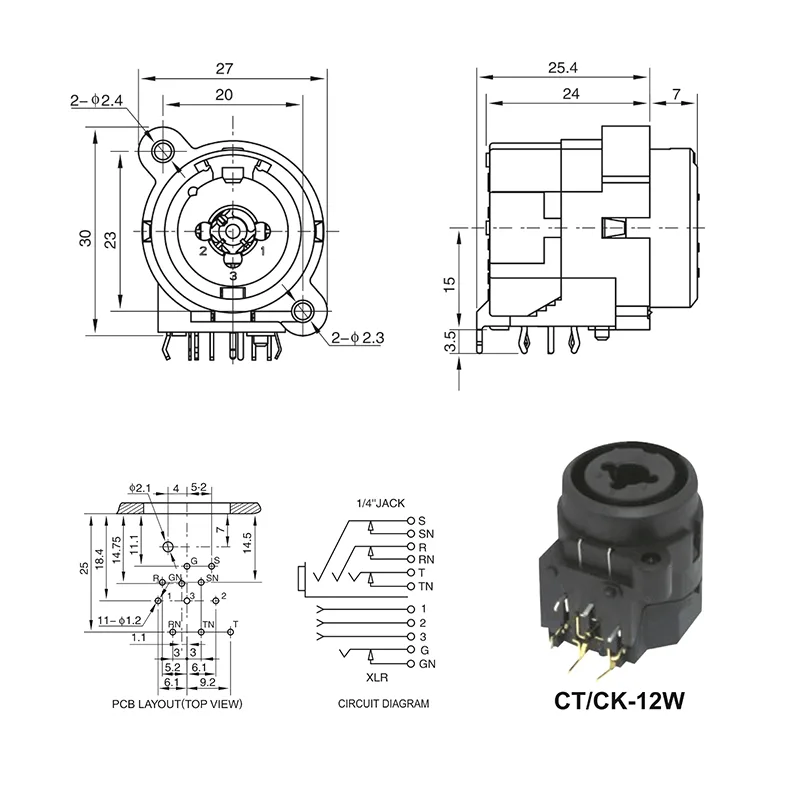

Specification Table:
| PRODUCT NAME | XLR 1/4 COMBO JACK CONNECTOR |
| MODEL | CTCK-12W-11 |
| TYPE | XLR Combo Jack |
| RATED LOAD | 50V AC 7.5A |
| CONTACT RESISTANCE | XLR<10mQ, JACK<20mQ |
| WITHSTAND VOLTAGE | 1600V, AC/min |
| TEMPERATURE | -20℃~+65℃ |
| LIFE | 5000 time |
| STRENGTH | 10N ~55N |
| COLOR | Black |
XLR Combo Jack vs Standard XLR Connector
| Type | Function | Application |
|---|---|---|
| Standard XLR | Microphone / balanced signal | Basic audio input |
| XLR Combo Jack | XLR + 1/4" shared input | Mixers / amplifiers / stage audio |
Key Features
- XLR + 1/4" hybrid combo design
- PCB mount with right-angle pins
- Space-saving compact structure
- Low noise signal transmission
- Durable design for frequent use
Applications
- Audio mixers
- Power amplifiers
- Audio interface boards
- Stage equipment
- Professional audio systems
Widely used in PCB-based audio equipment requiring combined XLR and 1/4 inch input interfaces for microphones, instruments, and line signals.
Why Choose Our Combo Jack Connector
- Professional connector manufacturer
- OEM / ODM customization
- Stable PCB integration design
- Strict quality control
- Competitive factory pricing
- XLR 1/4 combo jack PCB mount supplier
- combo jack connector manufacturer China
- PCB mount XLR 6.35mm combo socket factory
- XLR combo connector for mixer PCB
- buy combo jack connector in bulk
FAQ
Q1: What is an XLR 1/4 combo jack connector?
It is a hybrid connector that combines a 3-pin XLR socket and a 1/4 inch jack into one unit, allowing multiple audio input types in a compact design.
Q2: What is the advantage of a PCB mount combo jack?
It allows direct integration into circuit boards, saving space and improving connection stability in electronic devices.
Q3: Can this connector be used in mixers and amplifiers?
Yes, it is widely used in mixers, amplifiers, and PCB-based audio systems.
Q4: What signals does this connector support?
It supports microphone signals (XLR) and line or instrument signals (1/4 inch jack).
