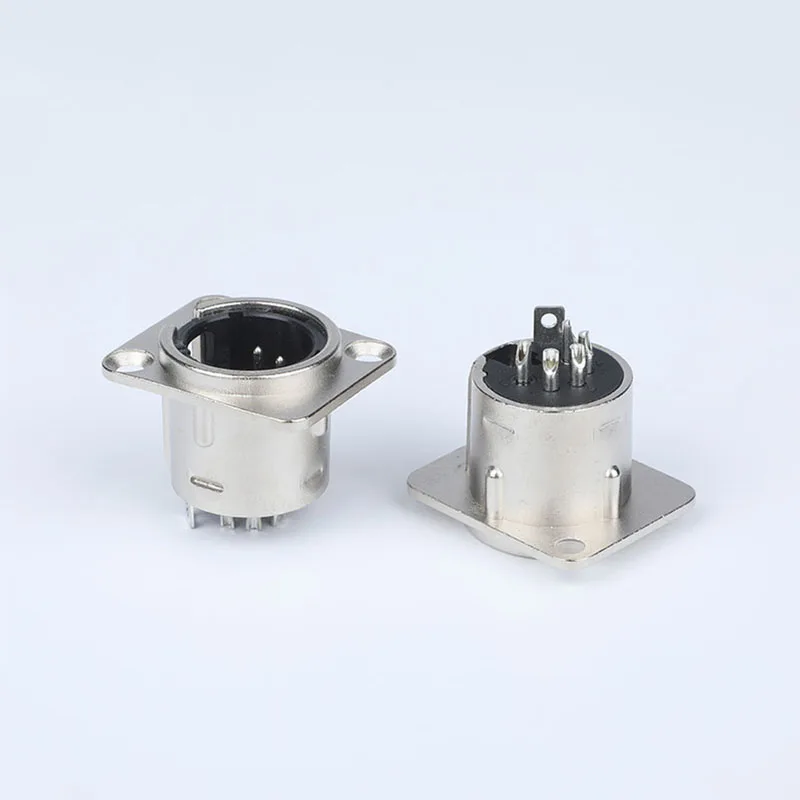

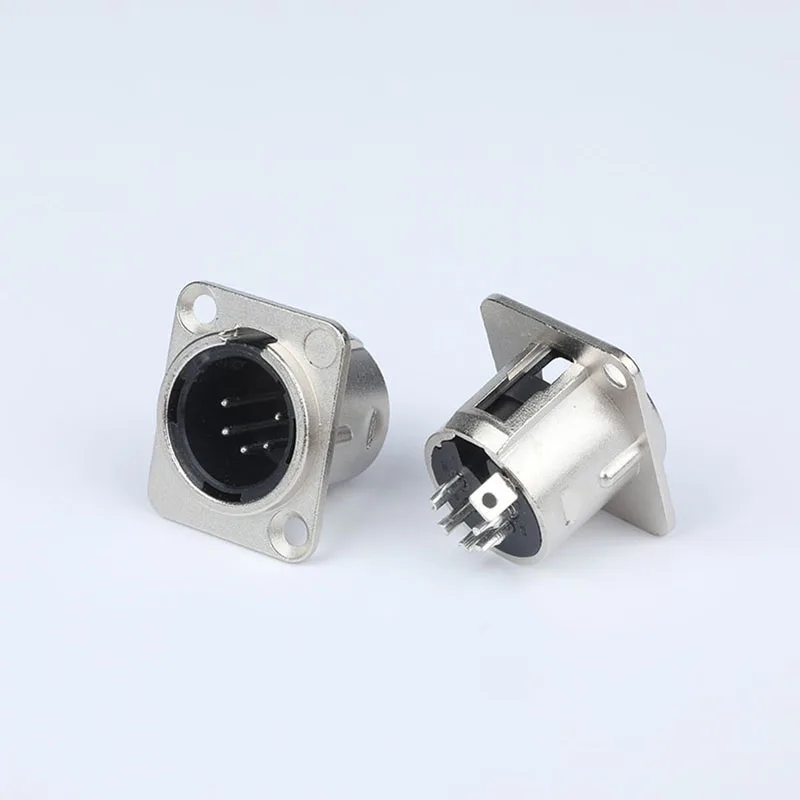

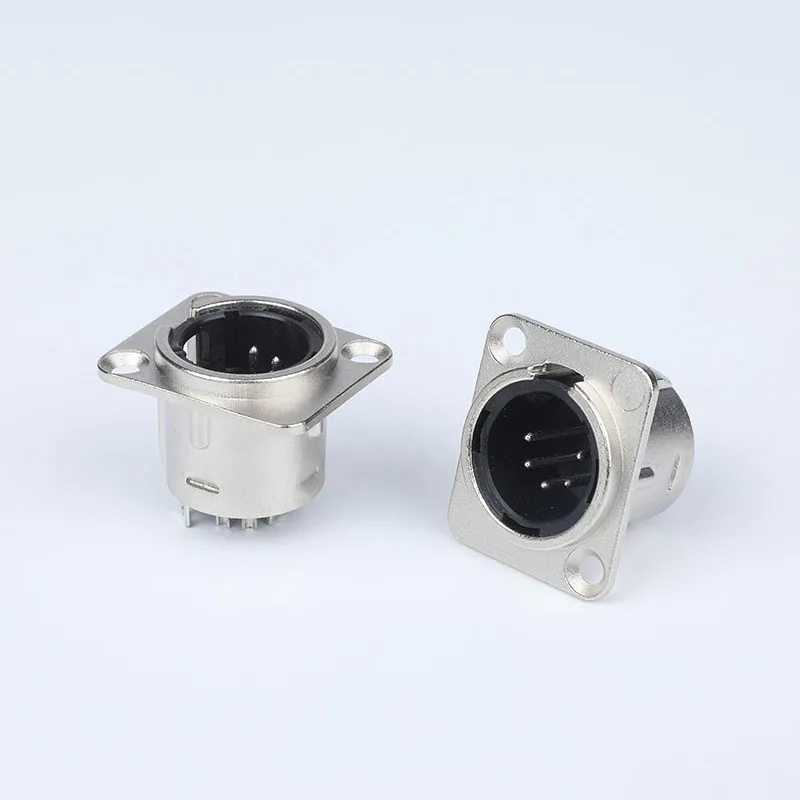

Specification Table:
| PRODUCT NAME | XLR PANEL MOUNT CONNECTORS |
| MODEL | CT5-15 |
| PIN | 5 PIN |
| RATED LOAD | 250V DC 1.0A |
| CONTACT RESISTANCE | ≤ 0.020 |
| WITHSTAND VOLTAGE | 1500V, AC/min |
| TEMPERATURE | -30℃~+80℃ |
| LIFE | 5000 time |
| TERMINAL STRENGTH | ≥ 30N |
| CUSTOMIZED | OEM / ODM |
3 Pin vs 5 Pin vs 6 Pin vs 7 Pin XLR Panel Connector
| Type | Signal | Application |
|---|---|---|
| 3 Pin | Audio | Microphones |
| 5 Pin | DMX control | Stage lighting |
| 6 Pin | Audio + control | Intercom |
| 7 Pin | Multi-signal | Tube mic |
Applications
- DMX lighting systems
- Stage lighting equipment
- Broadcast control systems
- Studio lighting setups
- Industrial signal control
Widely used in lighting and control systems requiring standardized panel installation and stable signal transmission.
Why Choose Our XLR Connector
- Professional connector manufacturer
- OEM / ODM customization
- Standard D-size compatibility
- Stable signal transmission
- Competitive factory pricing
- 5 pin XLR DMX panel mount connector supplier
- D size XLR chassis socket manufacturer
- 5 pin XLR connector for stage lighting
- professional DMX panel connector
- buy 5 pin XLR connector in bulk
FAQ
Q1: What is a 5 pin XLR panel mount connector?
It is a chassis-mounted connector used for DMX lighting and multi-signal transmission.
Q2: Why does DMX use 5 pin XLR connectors?
5 pin XLR is the official DMX standard because it supports additional signal channels and better reliability.
Q3: What is the advantage of D-size XLR connectors?
D-size connectors follow a standardized panel cutout, making them compatible with most professional equipment.
Q4: What is the difference between CT5-15 and cable connectors?
CT5-15 is mounted on equipment panels, while cable connectors are used on cables.
Q5: Is this compatible with Neutrik-style connectors?
Yes, it follows standard XLR dimensions and is compatible with most industry-standard plugs.
