Specification Table:

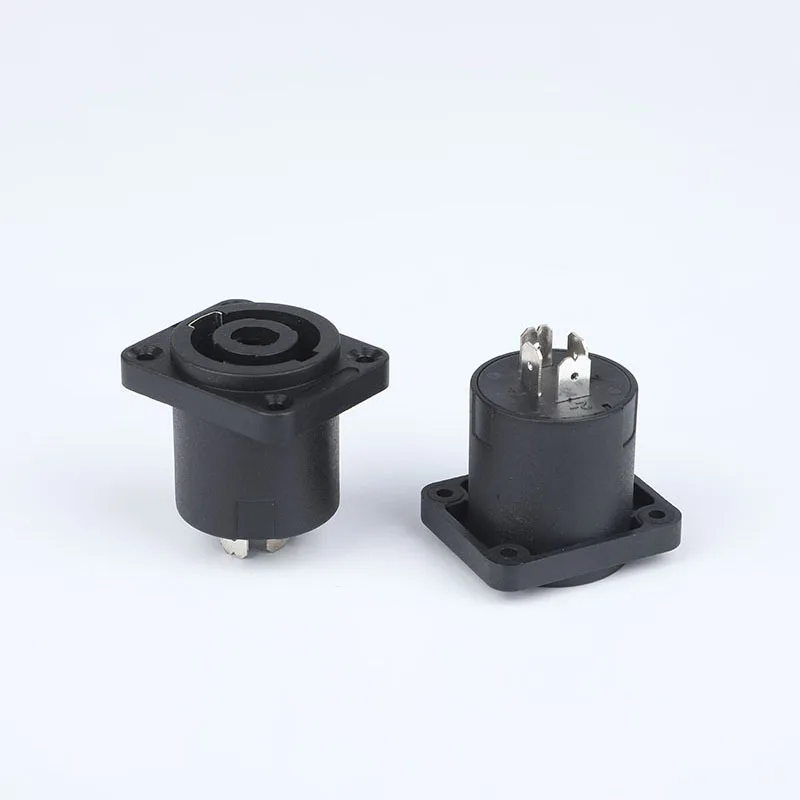

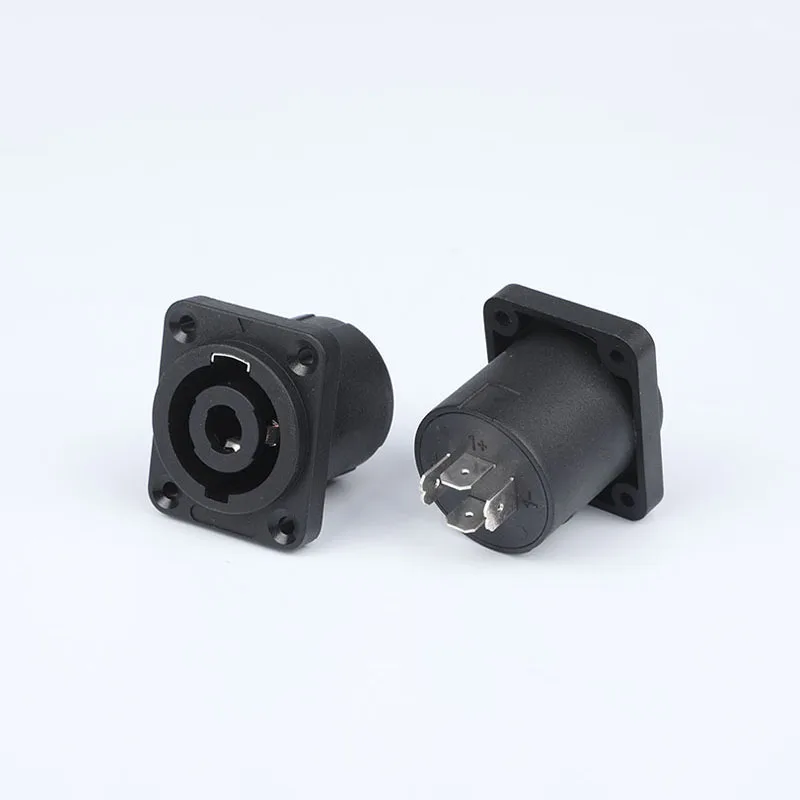

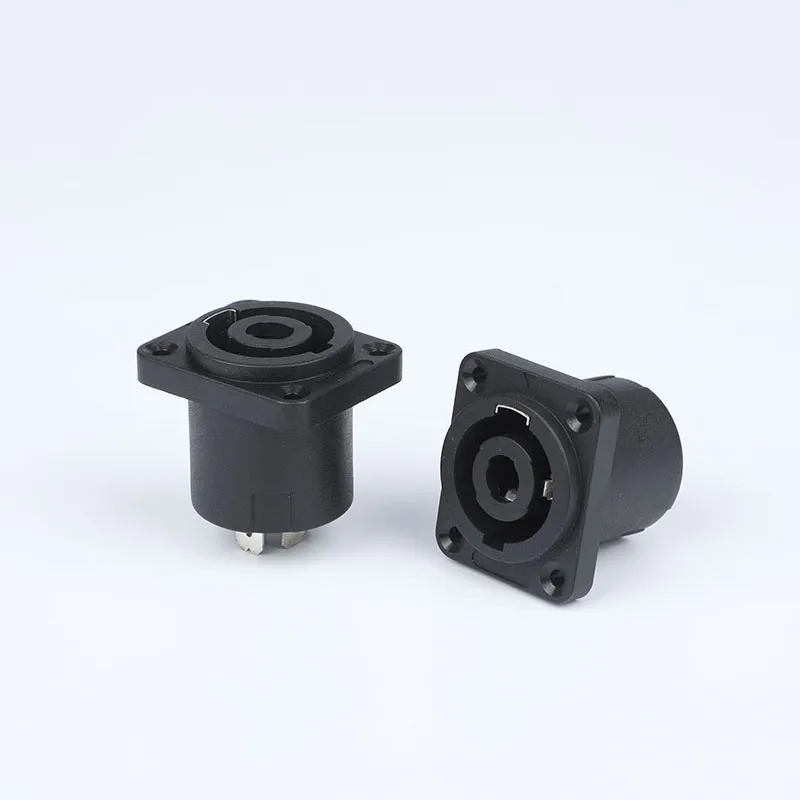

| Product Name | SpeakOn Connector 4 Pin Female Chassis Panel Mount Socket |
| Model | HP-07 |
| Pin | 4 PIN |
| Contact Resistance | <0.01 ΜΩ |
| Insulation Resistance | ≥2 GO |
| Withstand Voltage | 2.7 KV |
| Terminal Strength | ≥30 N |
| Rated Load | 250V AC |
| Temperature | -25 ~+70 ℃ |
| Life | 5000 Time |
Key Features:
- 4-pin design for high-power audio
- Speakon twist-lock secure connection
- Panel mount chassis structure
- High current capacity
- Durable and safe operation
Applications:
- PA systems
- Power amplifiers
- Professional loudspeakers
- Stage audio equipment
- Audio racks and cabinets
Widely used in professional audio systems requiring high-current, secure, and reliable speaker connections.
Speakon vs 6.35mm vs XLR Audio Connector:
| Type | Current Capacity | Locking | Application |
|---|---|---|---|
| Speakon | High (≥30A) | Twist-lock | Speaker / PA systems |
| 6.35mm Jack | Medium | No lock | Instruments / audio |
| XLR | Medium | Latch lock | Balanced audio |
Speakon connectors are specifically designed for high-current speaker connections and prevent misuse with low-power cables
Why Choose Our Speakon Connector:
- Professional audio connector manufacturer
- OEM / ODM customization
- High-current safety design
- Reliable locking mechanism
- Competitive factory pricing
- 4 pin speakon panel mount connector supplier
- speakon female chassis socket manufacturer
- speaker connector for amplifier speakon
- professional PA speaker connector 4 pole
- buy speakon connector in bulk
FAQ
Q1: What is a Speakon connector?
A Speakon connector is a professional audio connector used to connect amplifiers to loudspeakers, featuring a secure twist-lock mechanism.
Q2: Why use Speakon instead of 6.35mm jack?
Speakon connectors support much higher current, provide locking security, and prevent accidental disconnection.
Q3: What is a 4 pin Speakon connector used for?
It can carry two channels (bi-amping) or one high-power channel, commonly used in PA systems.
Q4: Is Speakon safer than other audio connectors?
Yes, it is designed with touch-proof contacts and locking structure for safe high-power use.
Q5: Can 2 pin and 4 pin Speakon be compatible?
Yes, 2-pin plugs can fit into 4-pin sockets (using +1 / -1), but not all combinations work in reverse.
