Specification Table:

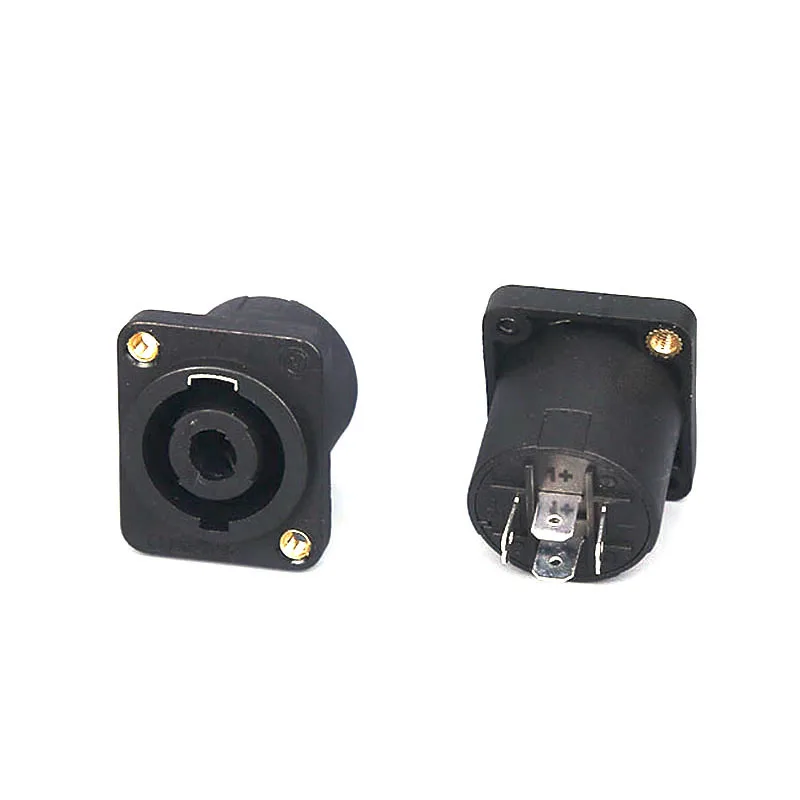

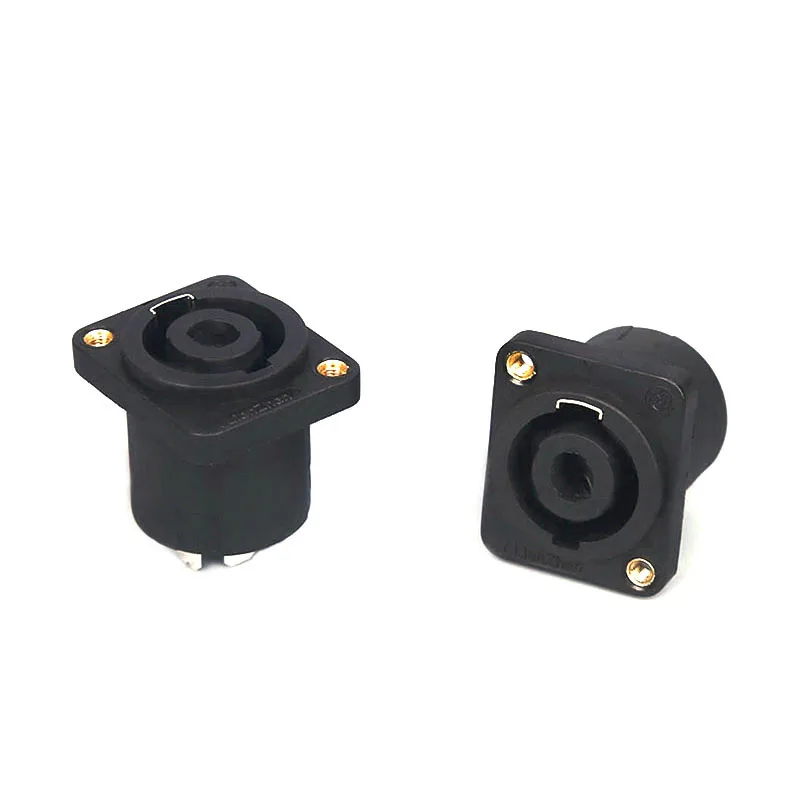

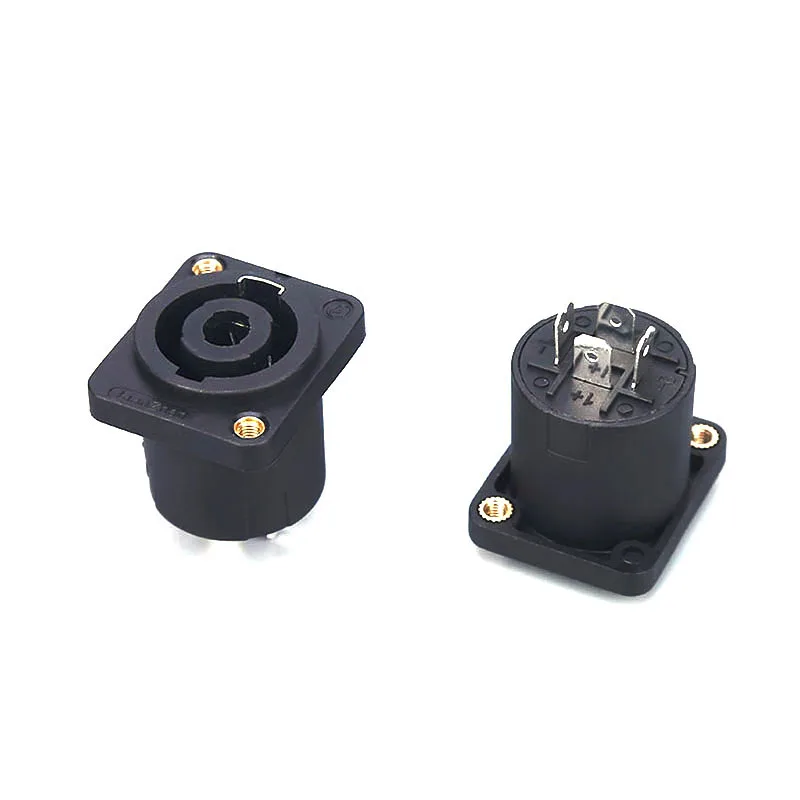

| Product Name | SpeakOn Connector 4 Pin Female Chassis Panel Mount Socket |
| Model | HP-15M3 |
| Pin | 4 PIN |
| Contact Resistance | <0.01 ΜΩ |
| Insulation Resistance | ≥2 GQ |
| Withstand Voltage | 2.7 KV |
| Terminal Strength | ≥30 N |
| Rated Load | 250V AC |
| Temperature | -25 ~+70℃ |
| Life | 5000 Time |
Key Features
- 4-pin design for speaker signal transmission
- Female chassis panel mount structure
- Secure twist-lock connection
- High durability and stable performance
- Suitable for professional audio systems
Applications
- Speaker cabinets
- Power amplifiers
- PA systems
- Professional audio equipment
- Audio racks
Widely used in loudspeaker and amplifier interconnection systems requiring secure and stable panel-mounted connections.
Why Choose Our Speakon Connector
- Professional connector manufacturer
- OEM / ODM customization
- Strict quality control
- Fast delivery
- Competitive factory pricing
- 4 pin speakon female socket supplier
- speakon panel mount connector manufacturer
- speaker connector factory China
- speakon socket for speaker cabinet
- buy speakon connector in bulk
FAQ
Q1: What is a 4 pin Speakon female chassis panel mount socket?
It is a panel-mounted speaker connector used to connect amplifiers and loudspeakers securely in professional audio systems.
Q2: What is the advantage of a Speakon connector?
Speakon connectors use a locking mechanism that prevents accidental disconnection and ensures stable signal transmission.
Q3: What is the difference between 2 pin and 4 pin Speakon connectors?
A 4 pin connector supports more signal paths, making it suitable for professional and multi-channel audio systems.
Q4: Can this connector be used in speaker cabinets?
Yes, it is widely used in speaker cabinets, amplifiers, and PA systems.
