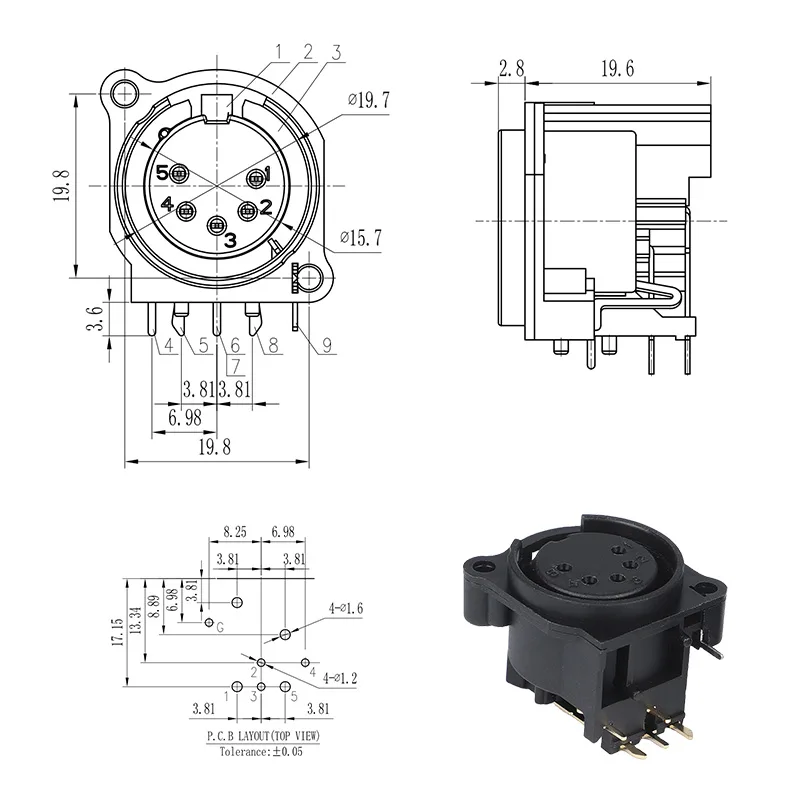

Specification Table:
| PRODUCT NAME | XLR PANEL MOUNT CONNECTORS |
| MODEL | CT5-01F |
| PIN | 5 PIN |
| RATED LOAD | 250V DC 1.0A |
| CONTACT RESISTANCE | ≤ 0.020 |
| WITHSTAND VOLTAGE | 1500V, AC/min |
| TEMPERATURE | -30℃~+80℃ |
| LIFE | 5000 time |
| TERMINAL STRENGTH | ≥ 30N |
| CUSTOMIZED | OEM / ODM |
CT5-01F vs FP vs HF XLR Connector
| Type | Structure | Application |
|---|---|---|
| CT5-01F | PCB + panel hybrid | General devices |
| CT5-01FP | Vertical PCB | Standard PCB layout |
| CT5-01HF | Right angle PCB | Compact layouts |
Applications
- DMX lighting systems
- PCB-based audio equipment
- Control panels
- Broadcast electronics
- Industrial signal systems
Widely used in devices requiring PCB integration with panel mounting for stable signal transmission and compact design.
Why Choose Our XLR Connector
- Professional connector manufacturer
- OEM / ODM customization
- Hybrid PCB + panel design
- Stable DMX signal transmission
- Competitive factory pricing
- 5 pin XLR PCB panel mount connector supplier
- hybrid XLR connector manufacturer China
- 5 pin XLR connector for DMX lighting
- compact XLR panel connector PCB mount
- buy XLR connector in bulk
FAQ
Q1: What is a 5 pin XLR panel mount connector?
It is a chassis-mounted connector used for DMX lighting and multi-signal transmission.
Q2: What makes CT5-01F different from other models?
It combines PCB mounting with panel fixing, offering both stability and easy integration.
Q3: What is a 5 pin XLR used for?
It is mainly used in DMX lighting systems and control signal transmission
Q4: What is the difference between vertical and right angle PCB connectors?
Vertical uses straight pins, while right-angle uses 90° pins for space-saving layouts.
Q5: Is this compatible with standard XLR plugs?
Yes, it follows standard XLR interface dimensions and is widely compatible.
