Specification Table:
| Product Name | XLR Plug Connector |
| Model | NC5FXX & NC5MXX |
| Pin | 5 PIN |
| Gender | Male, Female |
| Contact Resistance | ≤9mQ |
| Locking Device | Latch Lock |
| Insertion Force | ≤ 20 N |
| Lifetime | >1000 mating cycles |
| Color | Black |
| Compatible Devices | Speaker |
Key Features:
- 5-pin design for DMX & control signals

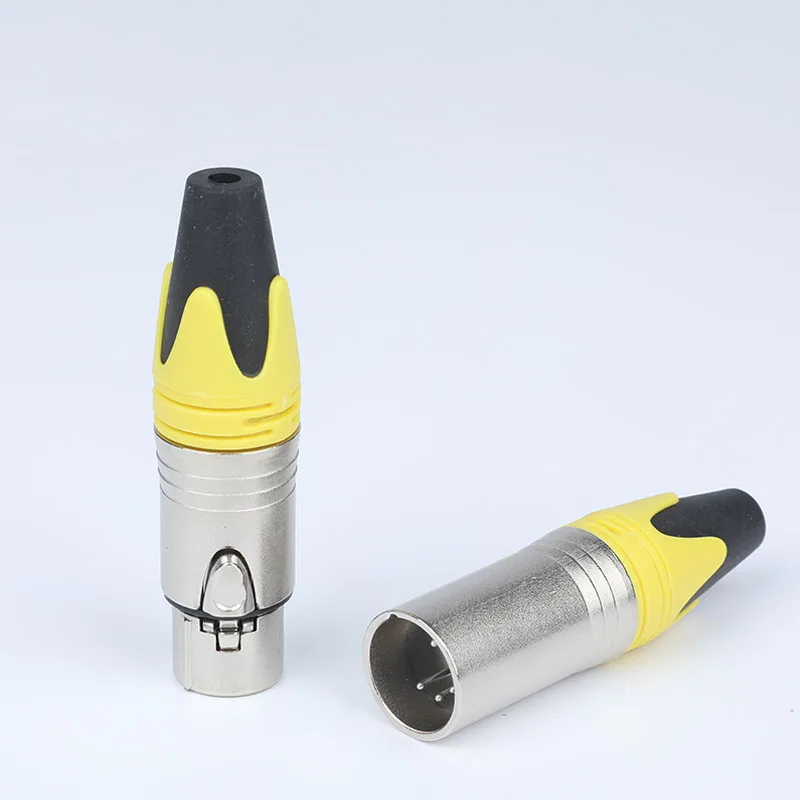

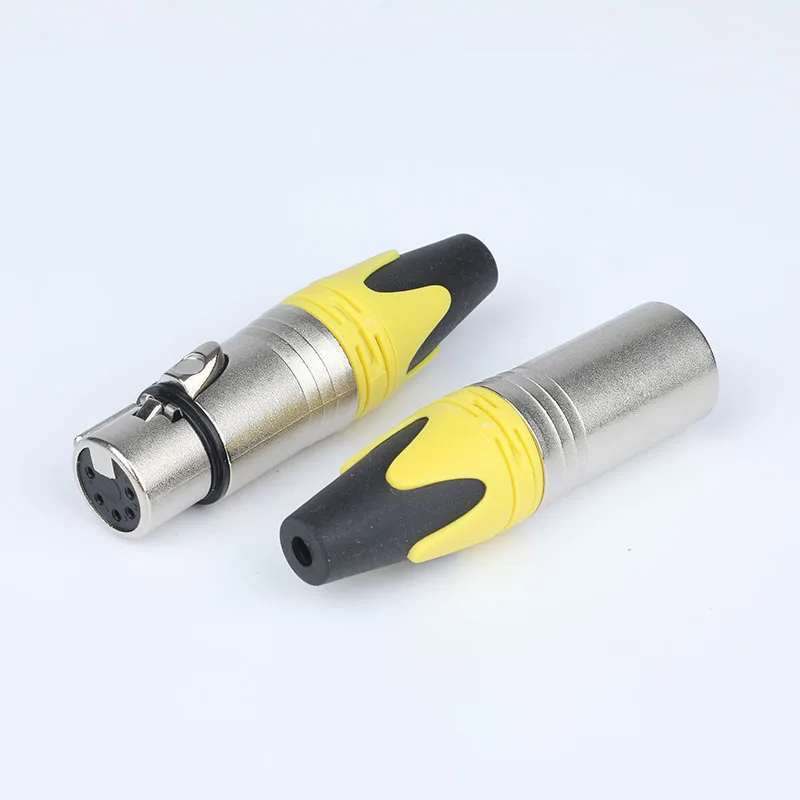

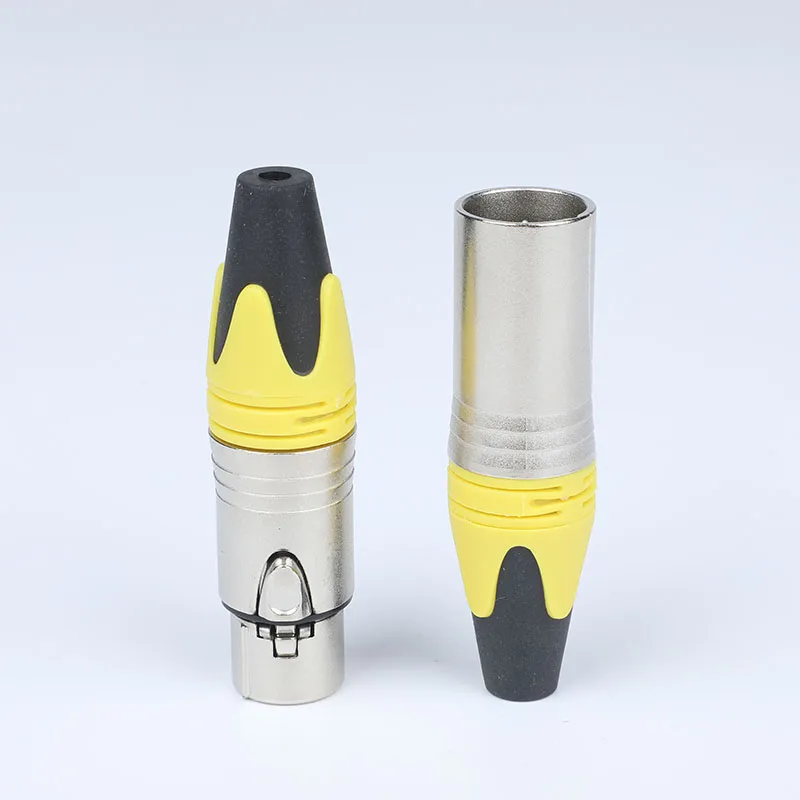

- Male & female cable connector set
- Durable metal housing
- Secure latch locking system
- Stable signal transmission
3 Pin vs 5 Pin vs 6 Pin vs 7 Pin XLR Connector
| Type | Signal | Application |
|---|---|---|
| 3 Pin | Audio | Microphones |
| 5 Pin | DMX / control | Stage lighting |
| 6 Pin | Audio + control | Intercom |
| 7 Pin | Multi-signal | Tube mic / industrial |
Applications:
- DMX lighting systems
- Stage lighting equipment
- Broadcast control systems
- Studio lighting setups
- Industrial signal control
Widely used in lighting and control systems requiring stable multi-signal transmission and secure connections.
Why Choose Our XLR Connector:
- Professional connector manufacturer
- OEM / ODM customization
- Durable metal construction
- Stable signal transmission
- Competitive factory pricing
- 5 pin XLR DMX connector supplier
- NC5FXX NC5MXX equivalent manufacturer
- 5 pin XLR connector for stage lighting
- professional DMX cable connector
- buy 5 pin XLR connector in bulk
FAQ
Q1: What is a 5 pin XLR connector?
It is a multi-pin connector commonly used for DMX lighting control and signal transmission.
Q2: What is a 5 pin XLR used for?
It is mainly used in stage lighting systems, DMX control networks, and broadcast environments.
Q3: Why does DMX use 5 pin XLR instead of 3 pin?
5 pin provides additional channels for signal expansion and is the official DMX standard.
Q4: Are NC5FXX and NC5MXX compatible?
Yes, they are standard female and male connectors designed to mate together.
Q5: Can this connector be used for audio?
Yes, but it is primarily designed for lighting and control signals rather than standard audio.
