Specification Table:

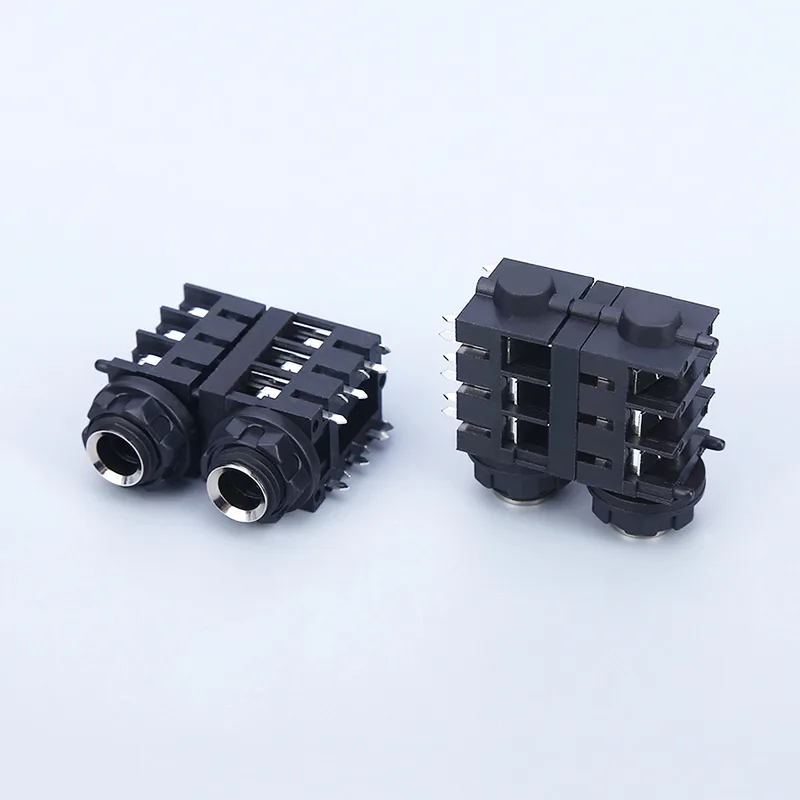

| PRODUCT NAME | 1/4 Inch Female Headphone Dual Jack |

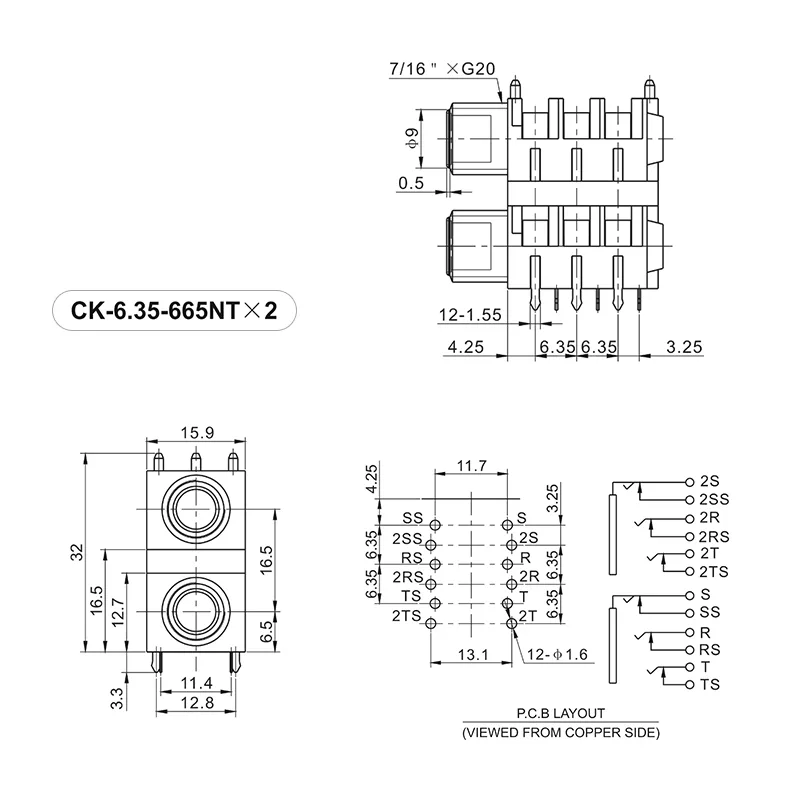

| MODEL | CK6.35-665QTX2 |
| RATED LOAD | 30V DC 1.0A |
| CONTACT RESISTANCE | ≤ 0.030 |
| WITHSTAND VOLTAGE | 500V, AC/min |
| TEMPERATURE | -30℃~+70℃ |
| LIFE | 5000 time |
| TERMINAL STRENGTH | 5N ~ 30N |
| Color | Black |
| Application | Audio-Video Equipment,Headphone etc |
Single Jack vs Dual Jack vs External Splitter difference:
| Type | Structure | Function | Application |
|---|---|---|---|
| Single Jack | One port | Basic audio | Standard devices |
| Dual Jack | Integrated dual ports | Dual output | Mixers / amplifiers |
| Splitter Cable | External accessory | Temporary split | Audio expansion |
Key Features
- Dual jack design for audio splitting
- Compact PCB mount structure
- Standard 6.35mm interface
- Stable signal transmission
- Durable and long lifespan
Applications:
- Audio mixers
- Amplifiers
- Headphone distribution systems
- Recording equipment
- Audio signal routing devices
Widely used in audio systems requiring dual output and efficient PCB space utilization.
Why Choose Our Audio Connector
- Professional connector manufacturer
- OEM / ODM customization
- Strict quality control
- Fast delivery
- Competitive factory pricing
- 6.35mm dual headphone jack PCB mount supplier
- 1/4 inch dual audio jack connector manufacturer
- dual output audio jack for amplifier
- PCB headphone splitter jack socket
- buy 6.35mm dual jack in bulk
FAQ
Q1: What is a dual headphone jack socket?
A dual headphone jack allows two audio outputs from a single circuit, commonly used in mixers and amplifiers.
Q2: What is the advantage of a PCB dual jack?
It integrates the splitting function directly into the circuit, improving reliability and saving space.
Q3: What is the difference between dual jack and splitter cable?
A dual jack is built into the device, while a splitter cable is external and less stable for long-term use.
Q4: Is 6.35mm the same as 1/4 inch?
Yes, 6.35mm equals 1/4 inch and is standard in professional audio equipment.
Q5: Can this be used for dual headphone output?
Yes, it is specifically designed for dual headphone or audio output applications.
